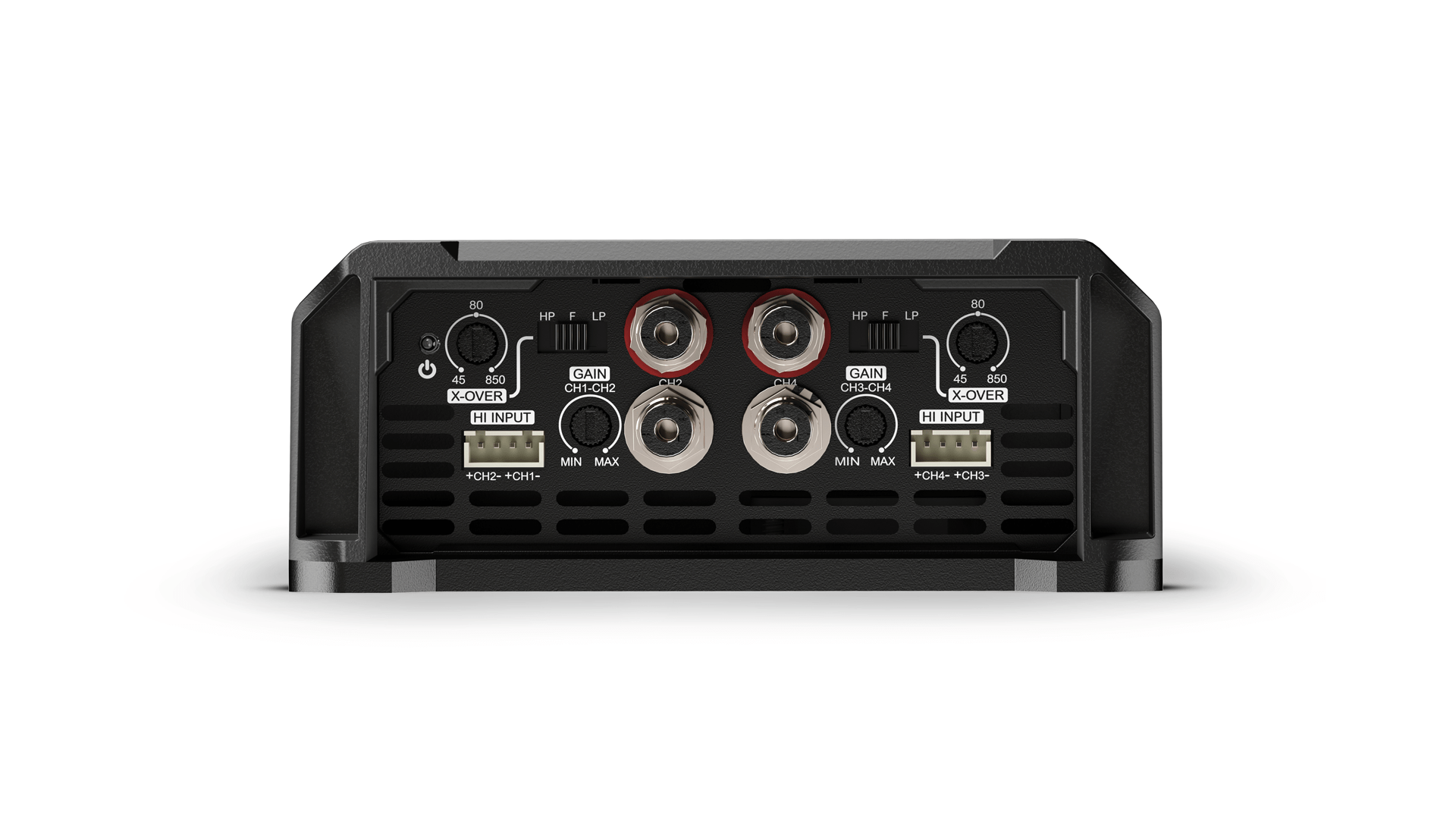

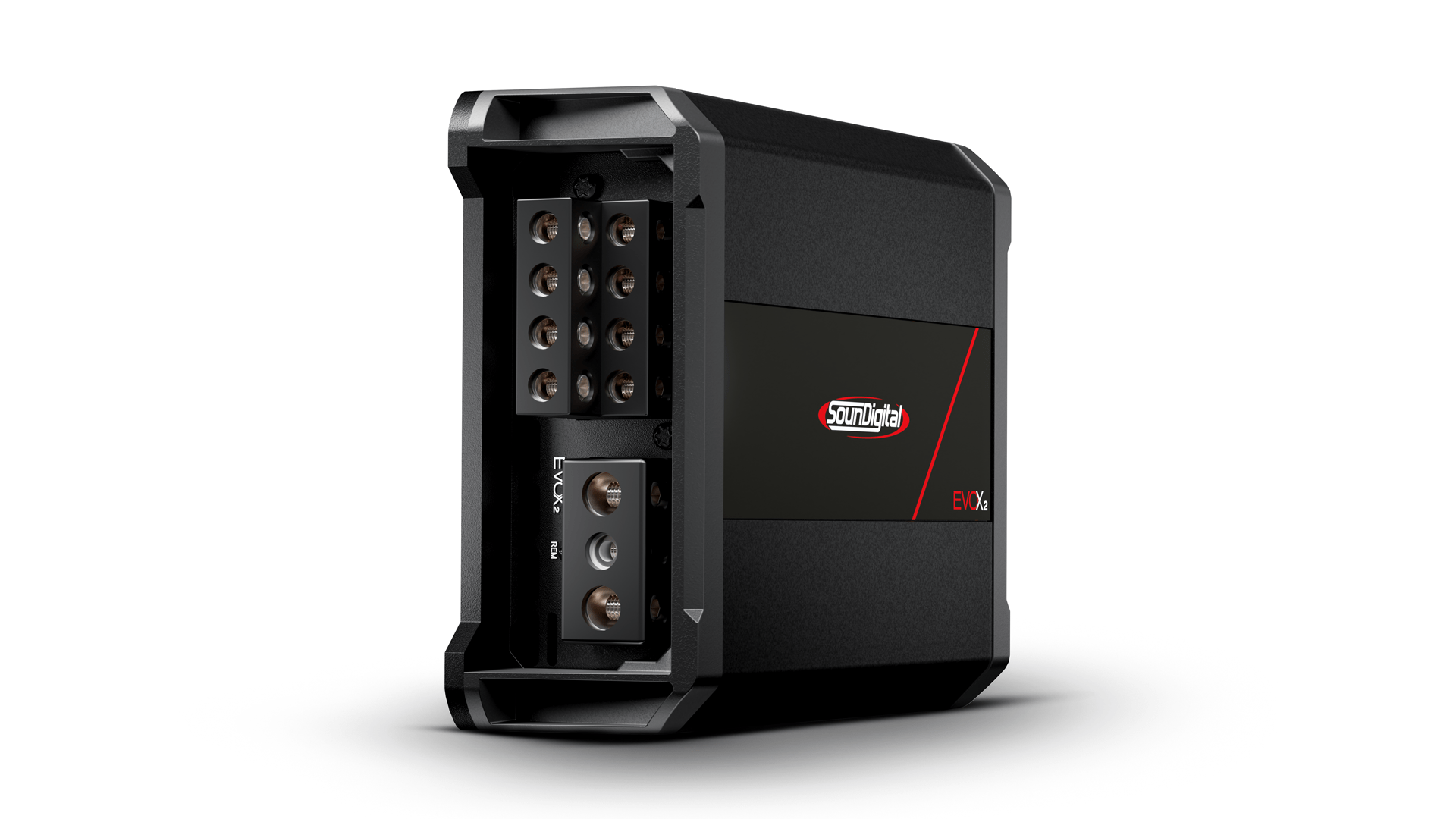

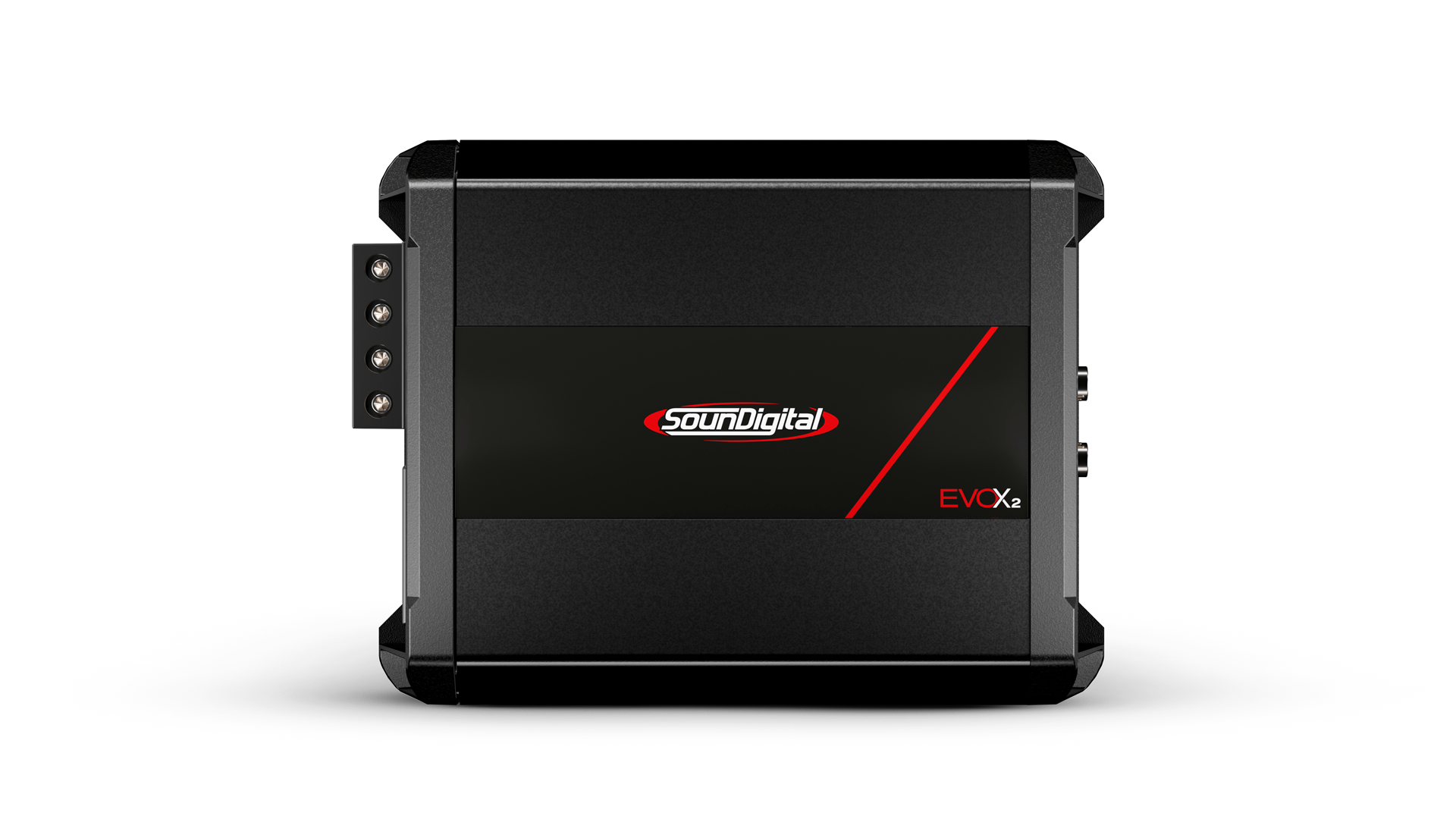

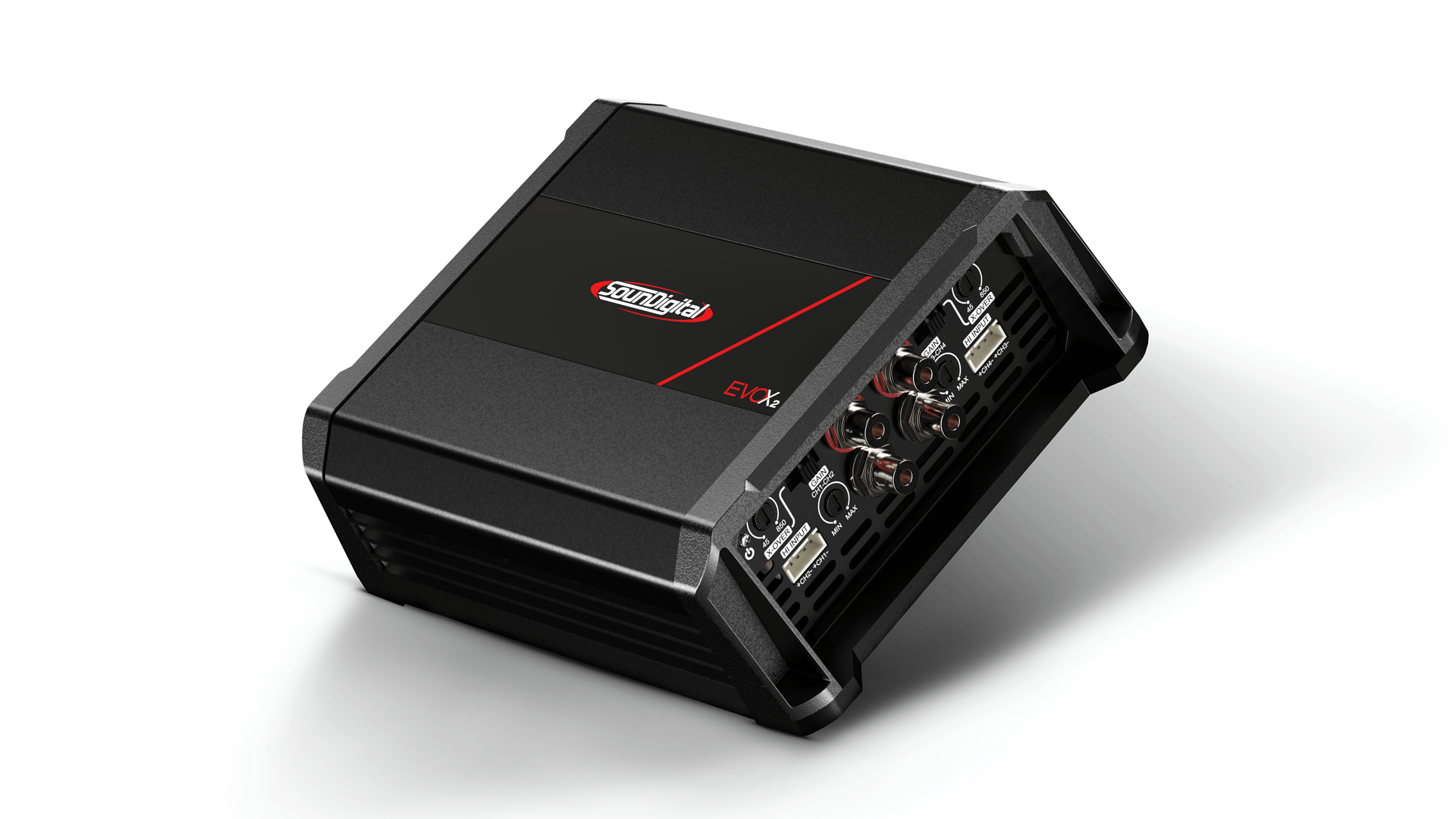

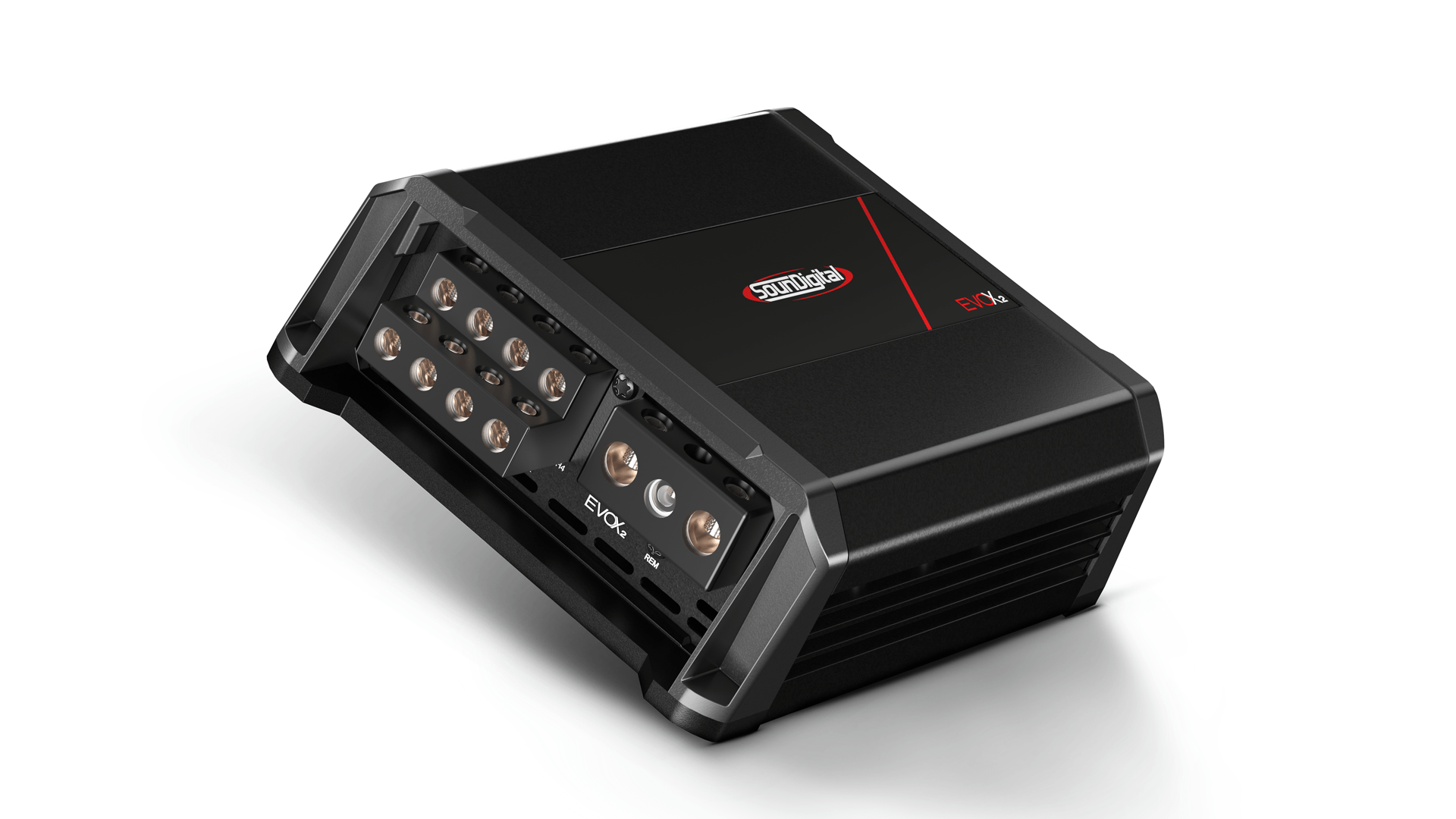

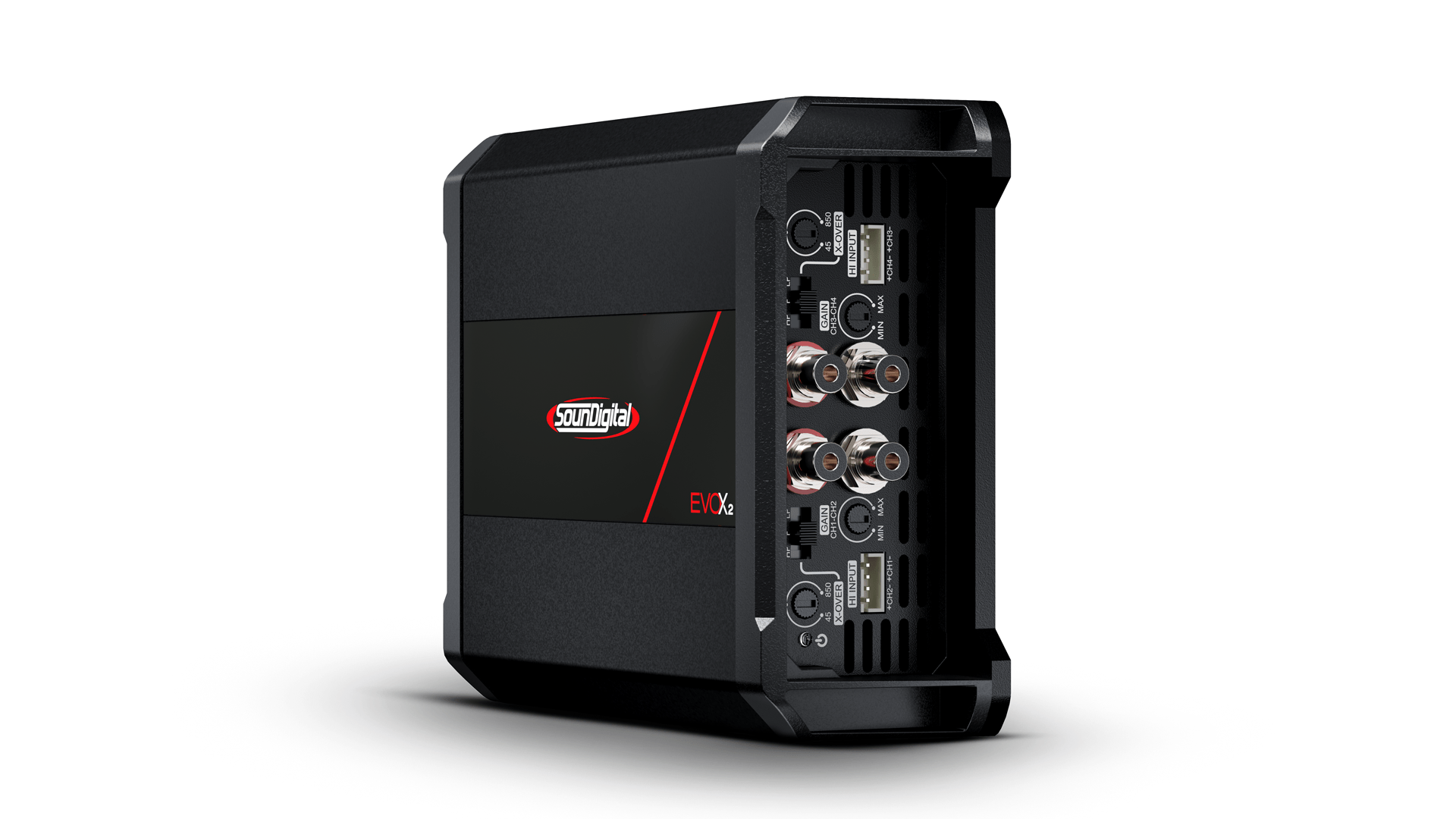

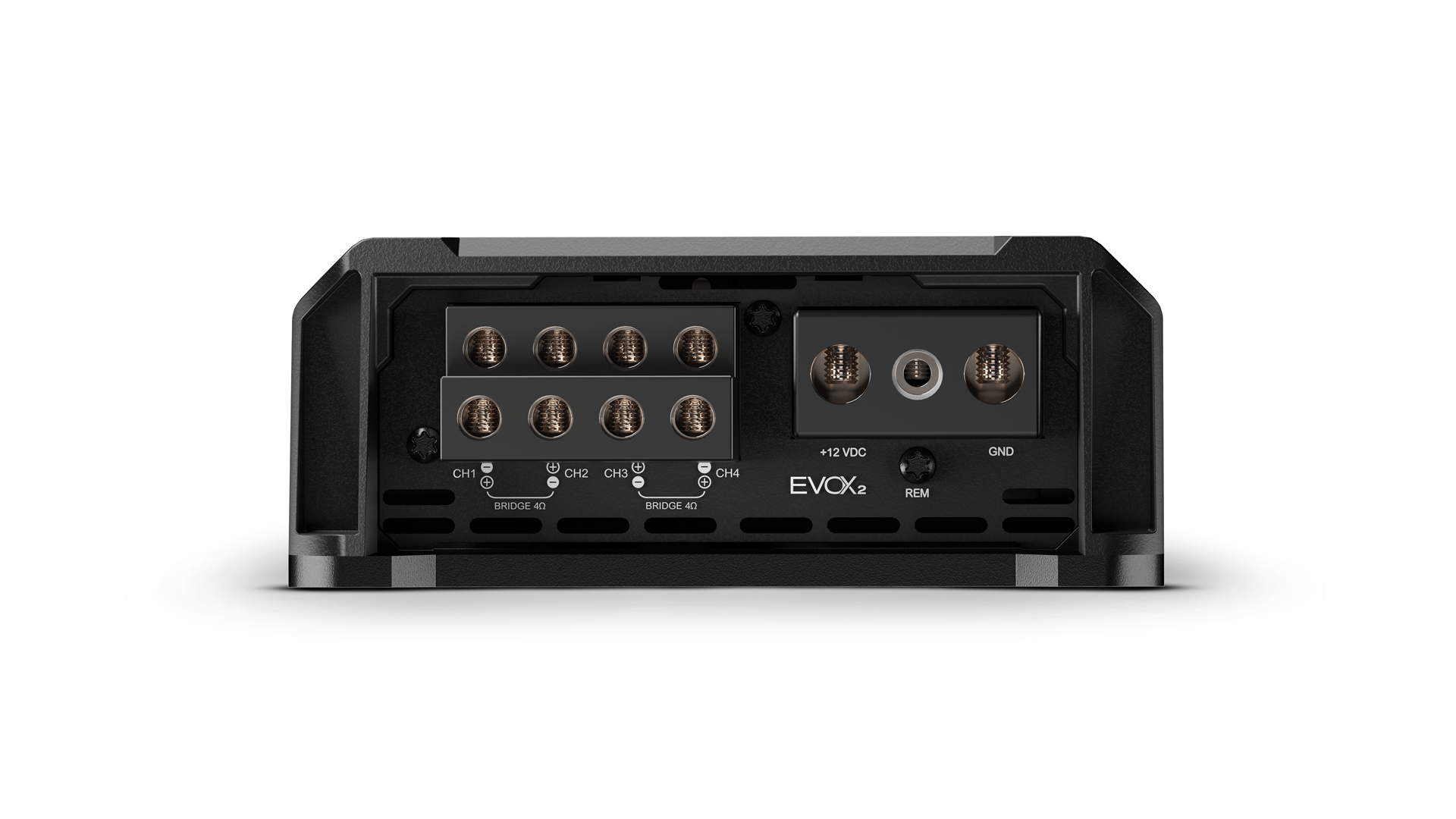

SounDigital SD1200.4 EVOX2 4 ohm
5 990 SEK
Nu tillgänglig i vår webbutik - SounDigital SD1200.4 EVOX2 4 ohm!
Förbättra ditt ljudsystem med den kraftfulla SounDigital SD1200.4 EVOX2 4 ohm-förstärkaren. Med en otrolig effekt och en 4 ohm-motståndsnivå tar denna förstärkare din musikupplevelse till en helt ny nivå.
SounDigital SD1200.4 EVOX2 4 ohm erbjuder enastående ljudkvalitet och leverans. Med sin kompakta design är den perf
- Betala säkert och enkelt!
- Mejla oss, vi svarar snabbt!
- Ring oss för eventuella frågor 0735005888
Beskrivning
Art.nr: SD1200.4-4 EVOX2
Power @ 1Ω: N/ A
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS
Frequency Response (-3dB):
5Hz – 22kHz
Low Pass filter (12dB/octave):
45Hz ~ 850Hz
High Pass filter (12dB/octave):
45Hz ~ 850Hz
Operating Voltage:
8V – 16V
SNR:
91dB
Input Sensitivity (RCA):
0.16 ~ 2V
Input Sensitivity (High Level input):
1.32V ~ 14.3V
Current Draw (Music):
2Ω: 55A
4Ω: 52A
Current Draw (Max):
2Ω: 110A
4Ω: 105A
Total Efficiency:
85%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
16mm²(5 AWG)
Speaker Cable
2 x 2.5mm² (13 AWG)
Recommended Fuse (Music):
60A
Recommended Battery (Music):
60Ah
Width:
5.4 in / 13,6 cm
Length:
7.1 in / 18,2 cm
Height:
2.2 in / 5,5 cm
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS
Frequency Response (-3dB):
5Hz – 22kHz
Low Pass filter (12dB/octave):
45Hz ~ 850Hz
High Pass filter (12dB/octave):
45Hz ~ 850Hz
Operating Voltage:
8V – 16V
SNR:
91dB
Input Sensitivity (RCA):
0.16 ~ 2V
Input Sensitivity (High Level input):
1.32V ~ 14.3V
Current Draw (Music):
2Ω: 55A
4Ω: 52A
Current Draw (Max):
2Ω: 110A
4Ω: 105A
Total Efficiency:
85%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
16mm²(5 AWG)
Speaker Cable
2 x 2.5mm² (13 AWG)
Recommended Fuse (Music):
60A
Recommended Battery (Music):
60Ah
Width:
5.4 in / 13,6 cm
Length:
7.1 in / 18,2 cm
Height:
2.2 in / 5,5 cm
