AI-SONIC S2-A2200.1 with S2-BASS KNOB
4 690 SEK
Mono amplifier
2200W

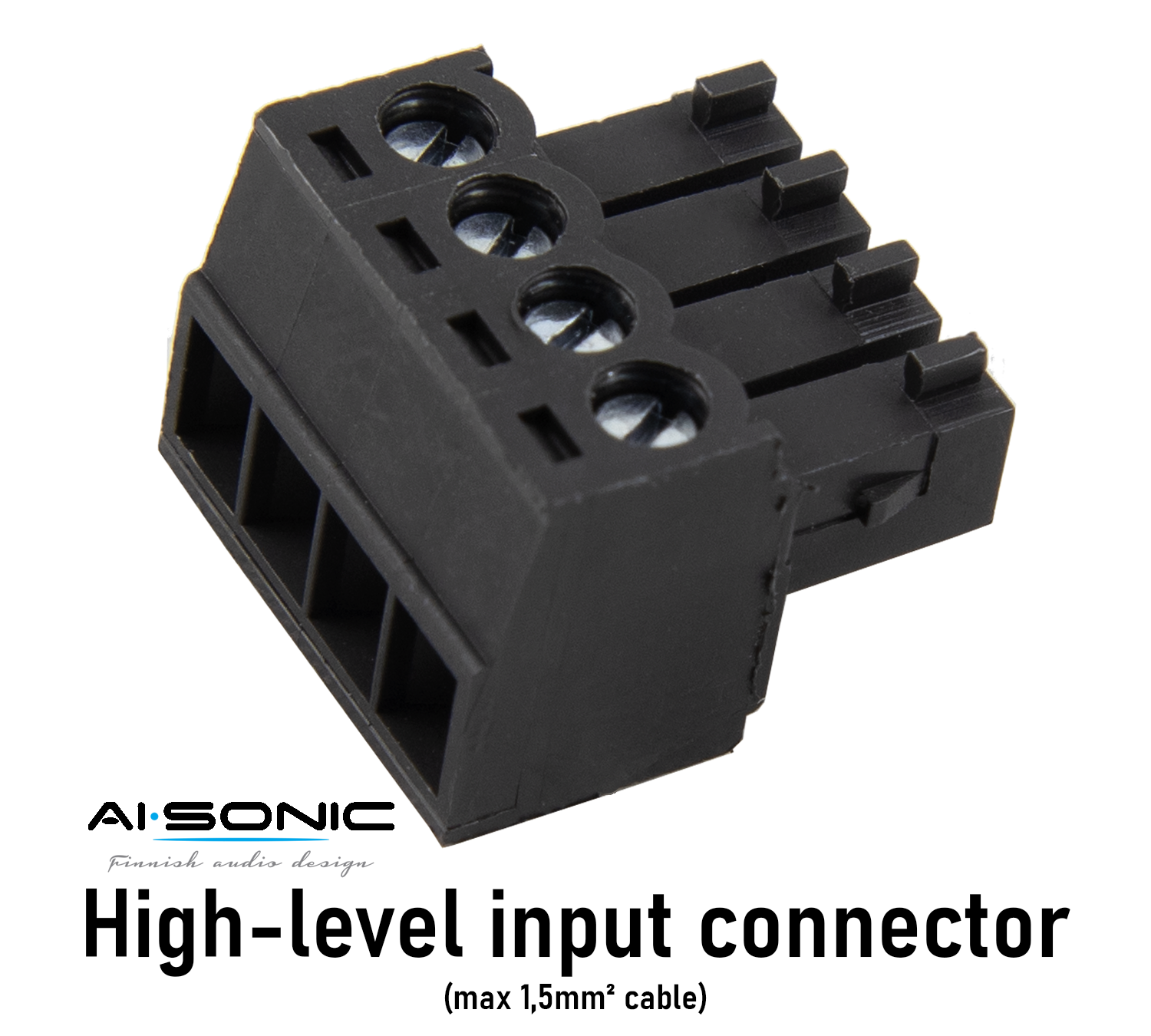

High-Level input
Wired remote control
Designed in Finland
- Betala säkert och enkelt!
- Mejla oss, vi svarar snabbt!
- Ring oss för eventuella frågor 0735005888
Beskrivning
Art.nr: 1973

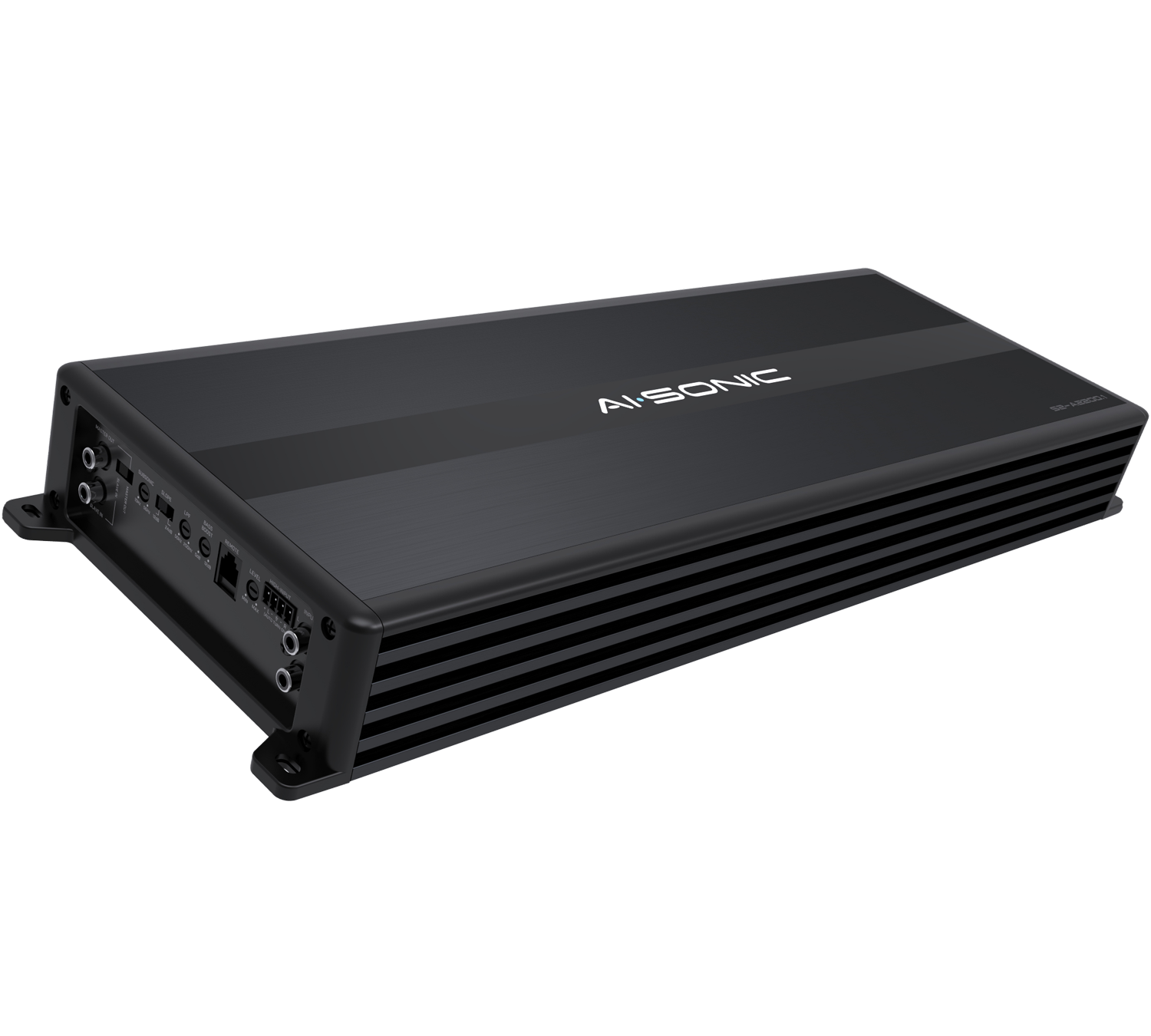

AI-Sonic S2-A2200.1 is mono D class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!

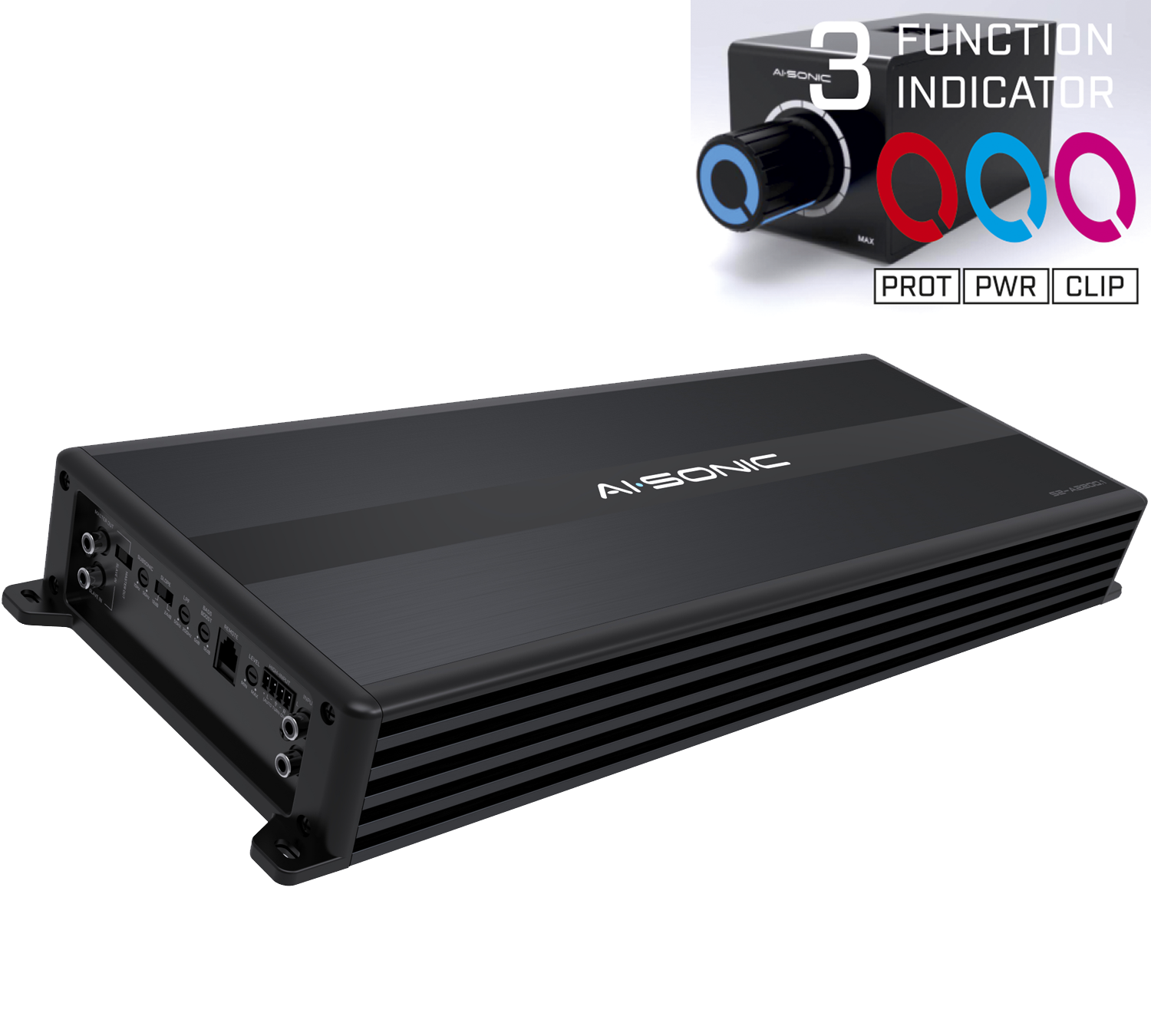

Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
(Works only when LPF is turned on.)
Designed in Finland.
RMS POWER (1ohm) THD 0.5% 2200W
RMS POWER (2ohm) THD 0.5% 1400W
RMS POWER (4ohm) THD 0.5% 750W
BRIDGED POWER(2ohm) THD 0.5% 4400 W ( Link )
BRIDGED POWER(4ohm) THD 0.5% 2800W ( Link )
T.H.D: 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35- 6V

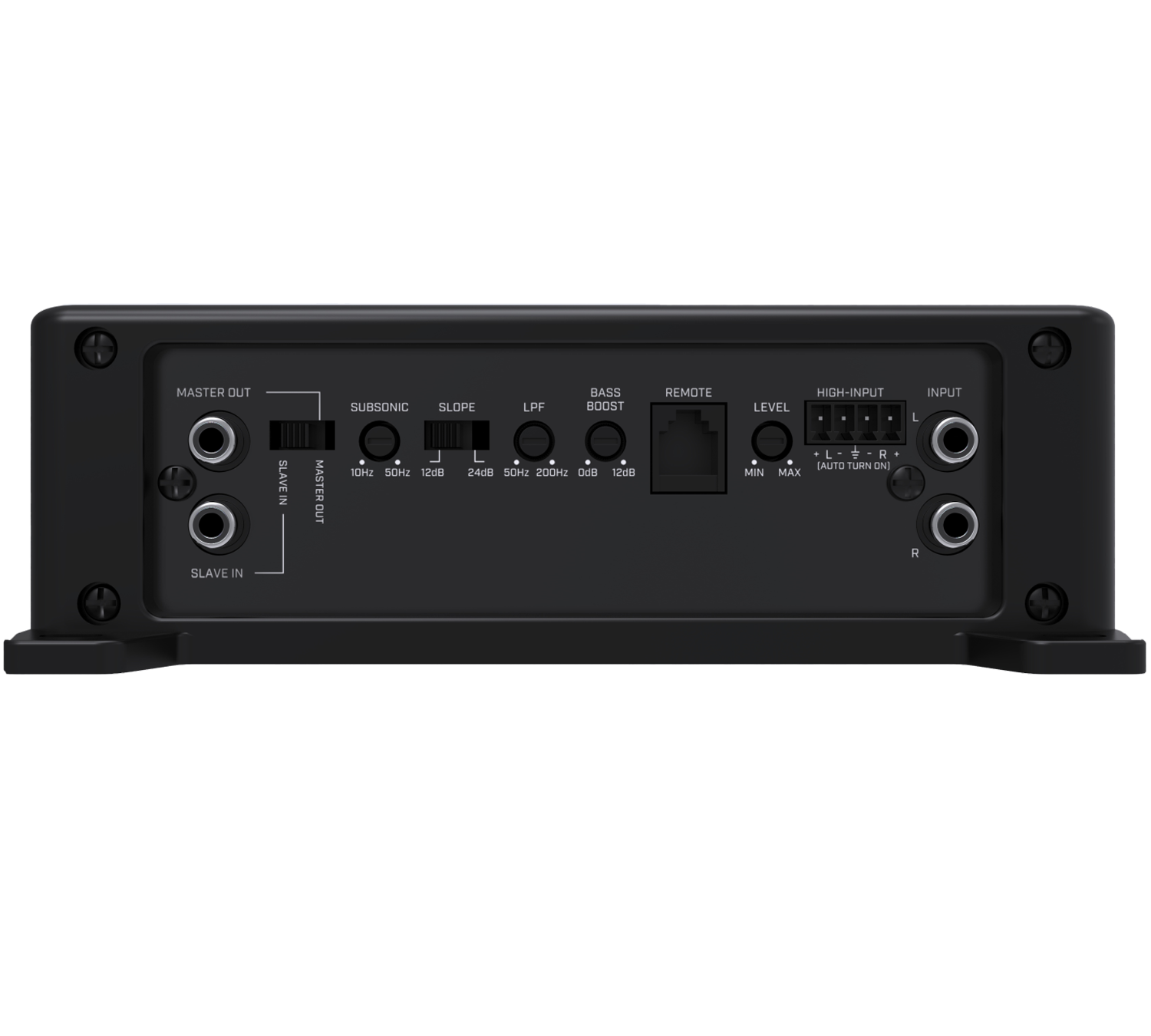

LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB /24dB/oct
BASS BOOST: 0-12dB(@45 Hz)
POWER FUSE: External 250A

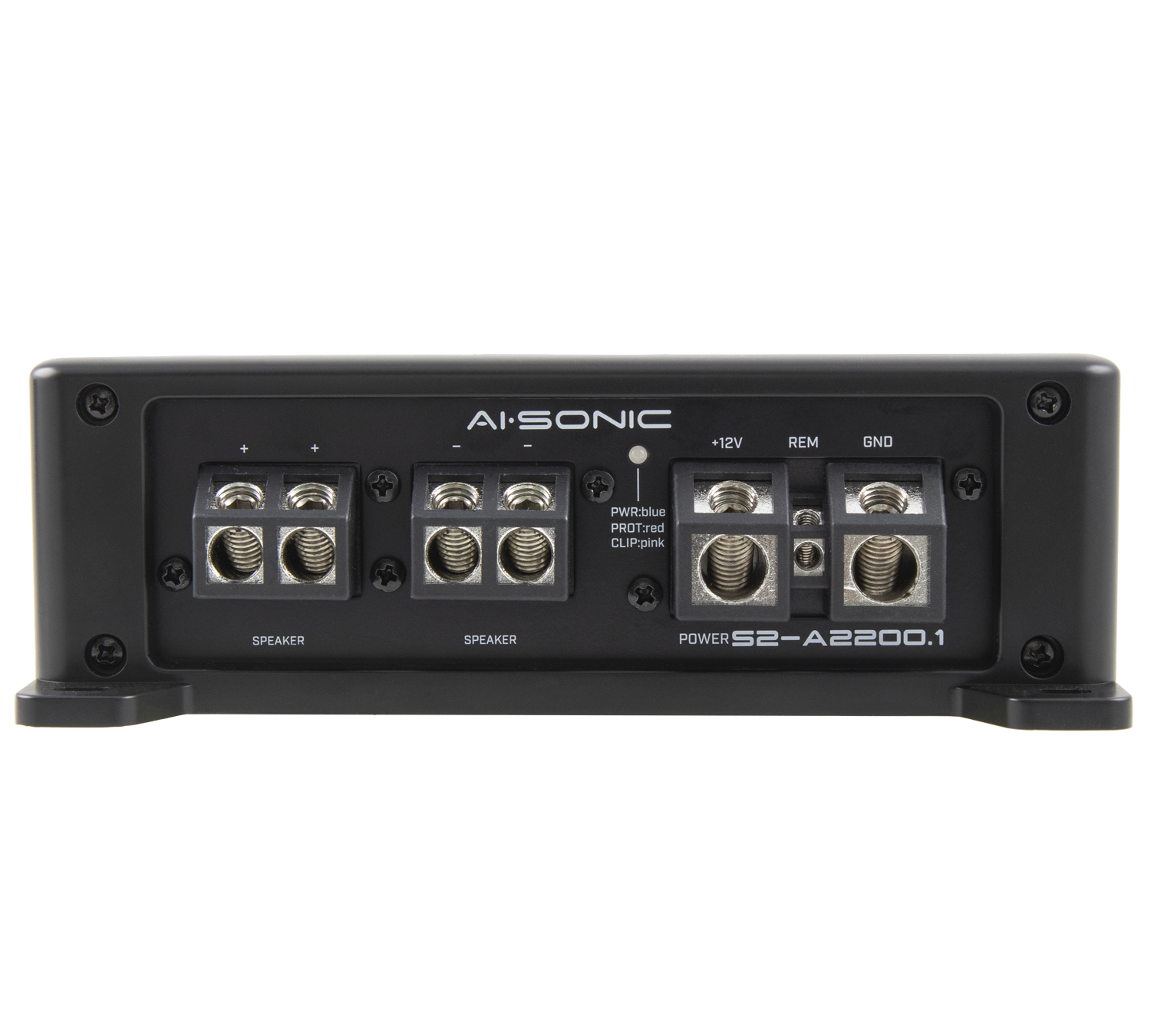

Cable fitting size:
+12V = 50mm2
GND = 50mm2
REM = 6mm2
SPEAKER = 20mm2
Current Draw (Max): 250A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 524mm / ( 20.6 IN).
