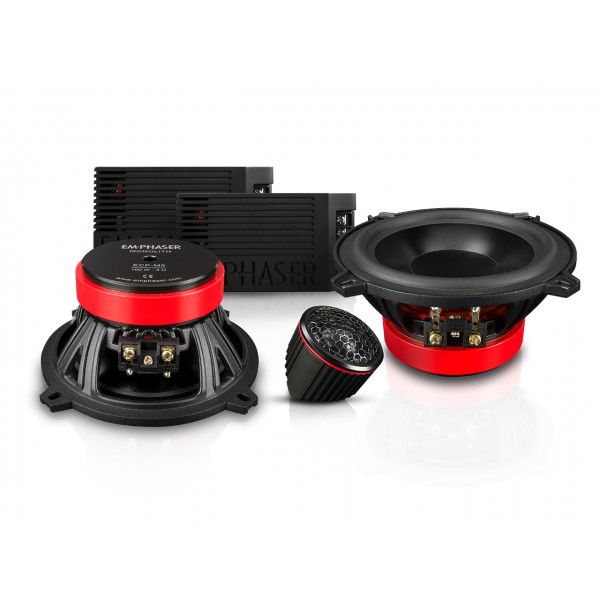

Emphaser ECP-M5
2 795 SEK
∅ 13 cm component system High End
- Betala säkert och enkelt!
- Mejla oss, vi svarar snabbt!
- Ring oss för eventuella frågor 0735005888
Beskrivning
Art.nr: 1554
| Nominal power handling: 100 W RMS | |
| Nominal impedance: 4 ohms | |
| Frequency response: 70 Hz – 22 kHz | |
| Sensitivity 1W/1m: 87 dB | |
| Mounting diameter: 116 mm | |
| Mounting depth: 58 mm |
KEY FEATURE WOOFER
- Aluminum Diecast-basket with optimized temperature management
- Strontium-Ferrite magnet motor
- Aluminum cone with inverted Aluminum dust cap
- Butyl-rubber surround
- Two layer copper voice-coil, wound on temperature resistant and electrically neutral Polyimide voice-coil former
- Long-living Connex-spider with woven tinsel leads
- Gold-plated screw terminal
KEY FEATURE TWEETER
- 25 mm silk dome
- Neodymium magnet motor
- CNC-milled Aluminum-housing with low mounting depth
- Grill with large hexagon holes for high sound permeability and low reflection
- Mounting housing for the installation in two angles
KEY FEATURE CROSSOVERS
- Separated crossover housings for tweeter and woofer for convenient installation. Secondly, there is no mutual interference between the two signal paths due to components that are too close together
- Use of high quality air coils, MKP capacitors and MOX resistors in the direct signal path
- 12 / 12 dB filter slope
- Three-level tweeter volume attenuation
