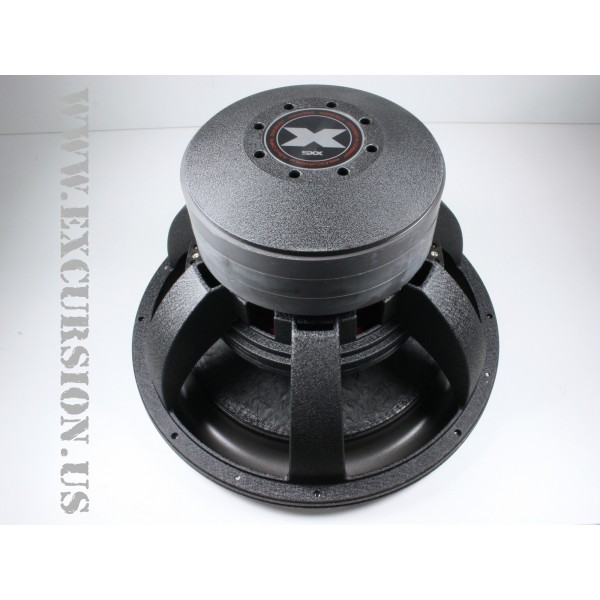

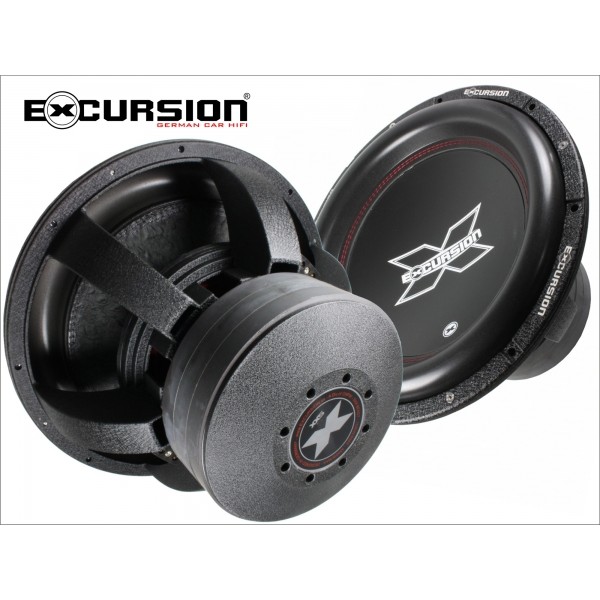

Excursion SXX15D4
4 500 SEK
15" / 38cm - 2x4Ohm - 3"CCAR 4layer Alu Flat
1500 RMS / 4500 W - 600oz Y35 Tripple Stack
MD=230mm ID=355mm OD=394mm W=20,0 kg

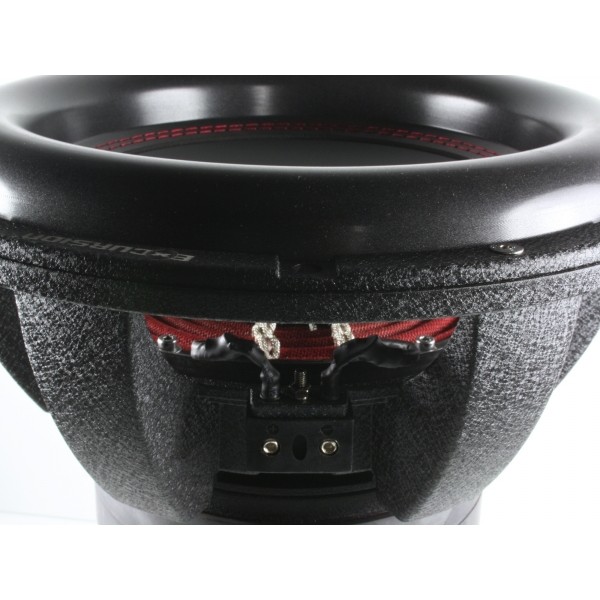

Dual Composite red linear Spider - 8GA Terminal

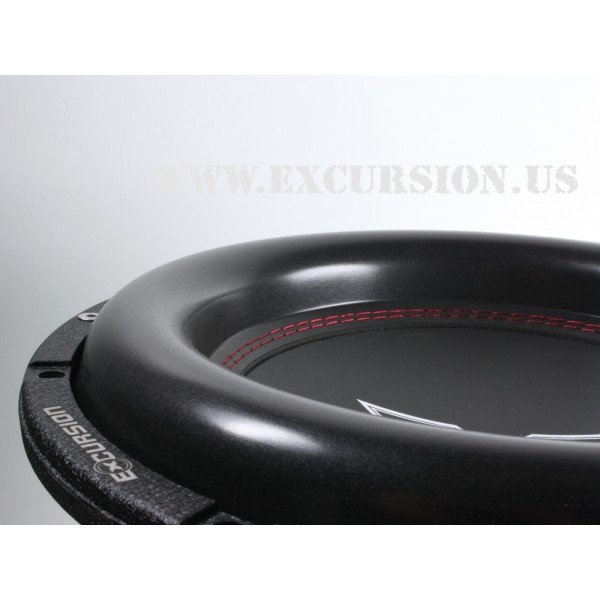

Red stiched HDR Surrounds - 12GA Dual Tinseal
- Betala säkert och enkelt!
- Mejla oss, vi svarar snabbt!
- Ring oss för eventuella frågor 0735005888
Beskrivning
Art.nr: 1622
VC Roll Range Height 60 mm
XMAX linear 21.5 / 43 mm
DC Resistance 2x 3Ohm
BL @ Paralell 13.64
Suspension Compliance Cms 0.049
Mechanical Q Factor Qms 4.98
Electrical Q Factor Qes 1.0
Total Q Factor Qts 0.83
Moving Mass Mms 389 g
Eq.Cas Air Load( liters) VAS Liter 42.4
Resonant Frequency Fs Hz 35
Effective Piston Area SD 779.3
XMAX linear 21.5 / 43 mm
DC Resistance 2x 3Ohm
BL @ Paralell 13.64
Suspension Compliance Cms 0.049
Mechanical Q Factor Qms 4.98
Electrical Q Factor Qes 1.0
Total Q Factor Qts 0.83
Moving Mass Mms 389 g
Eq.Cas Air Load( liters) VAS Liter 42.4
Resonant Frequency Fs Hz 35
Effective Piston Area SD 779.3
