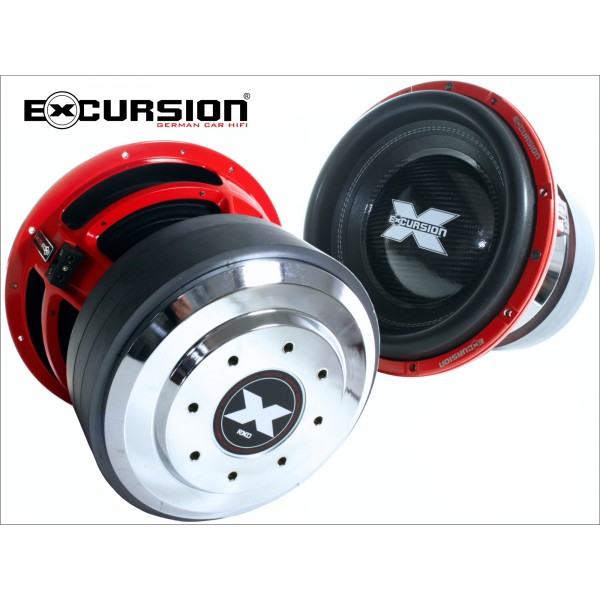

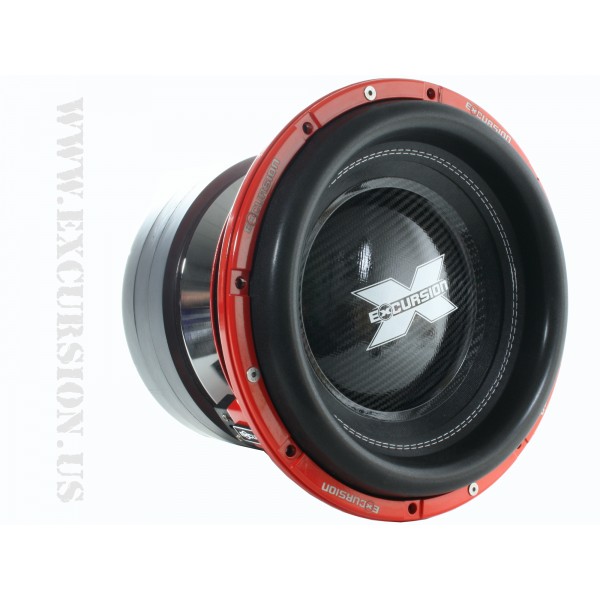

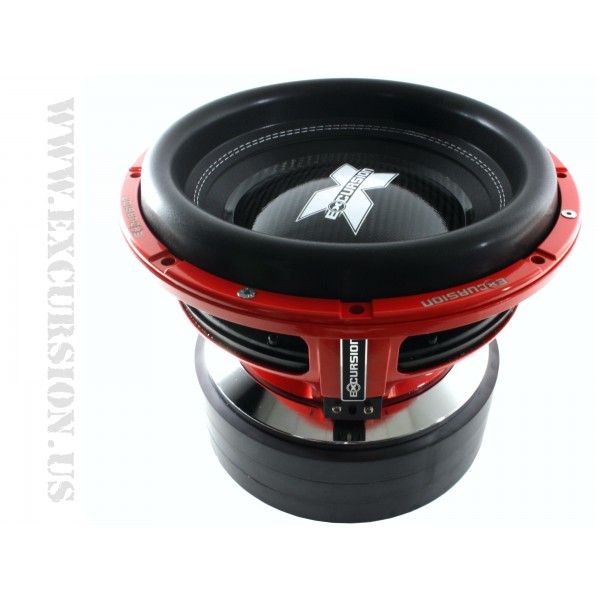

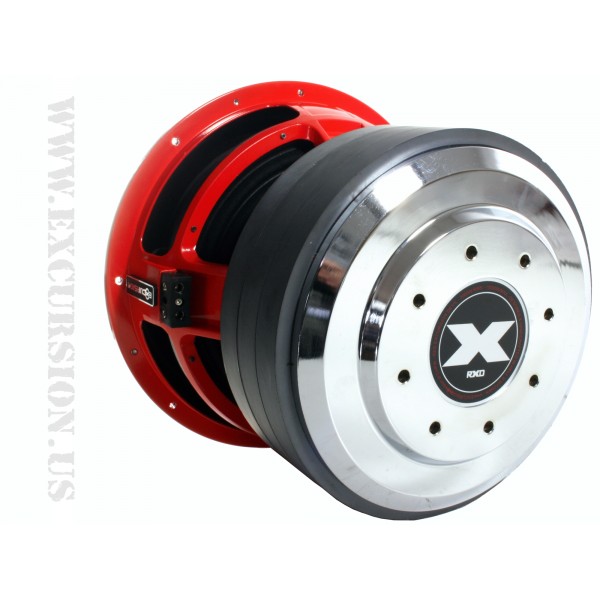

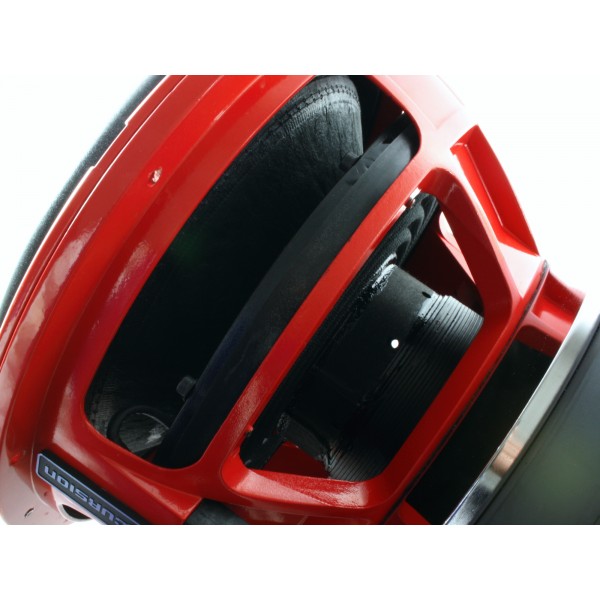

Excursion RXD12D1
9 995 SEK
12" / 30cm - 2x1Ohm - 30,8kg
5000 RMS / 15000 W
4" CCAR 4L Alu Flat Spule
1000oz Y35 Tripple Stack Motor
MD=250mm ID=287mm OD=318mm
Dual Composite black linear Spider
8GA Terminal - 10GA Dual Tinseal
White stiched 70:5 XHDR Surrounds
- Betala säkert och enkelt!
- Mejla oss, vi svarar snabbt!
- Ring oss för eventuella frågor 0735005888
Beskrivning
Art.nr: 1623
VC Roll Range height 85mm
XMAX linear 30 / 60 mm
DC Widerstand 2x 0.7Ohm
BL @ Series 21.67
Suspension Compliance Cms 0.028
Mechanical Q Factor Qms 3.1
Electrical Q Factor Qes 0.43
Total Q Factor Qts 0.37
Moving Mass Mms 576.7 g
Eq.Cas Air Load( liters) VAS Liter 10.37
Resonant Frequency Fs 39 Hz
Effective Piston Area SD 510.7
XMAX linear 30 / 60 mm
DC Widerstand 2x 0.7Ohm
BL @ Series 21.67
Suspension Compliance Cms 0.028
Mechanical Q Factor Qms 3.1
Electrical Q Factor Qes 0.43
Total Q Factor Qts 0.37
Moving Mass Mms 576.7 g
Eq.Cas Air Load( liters) VAS Liter 10.37
Resonant Frequency Fs 39 Hz
Effective Piston Area SD 510.7
